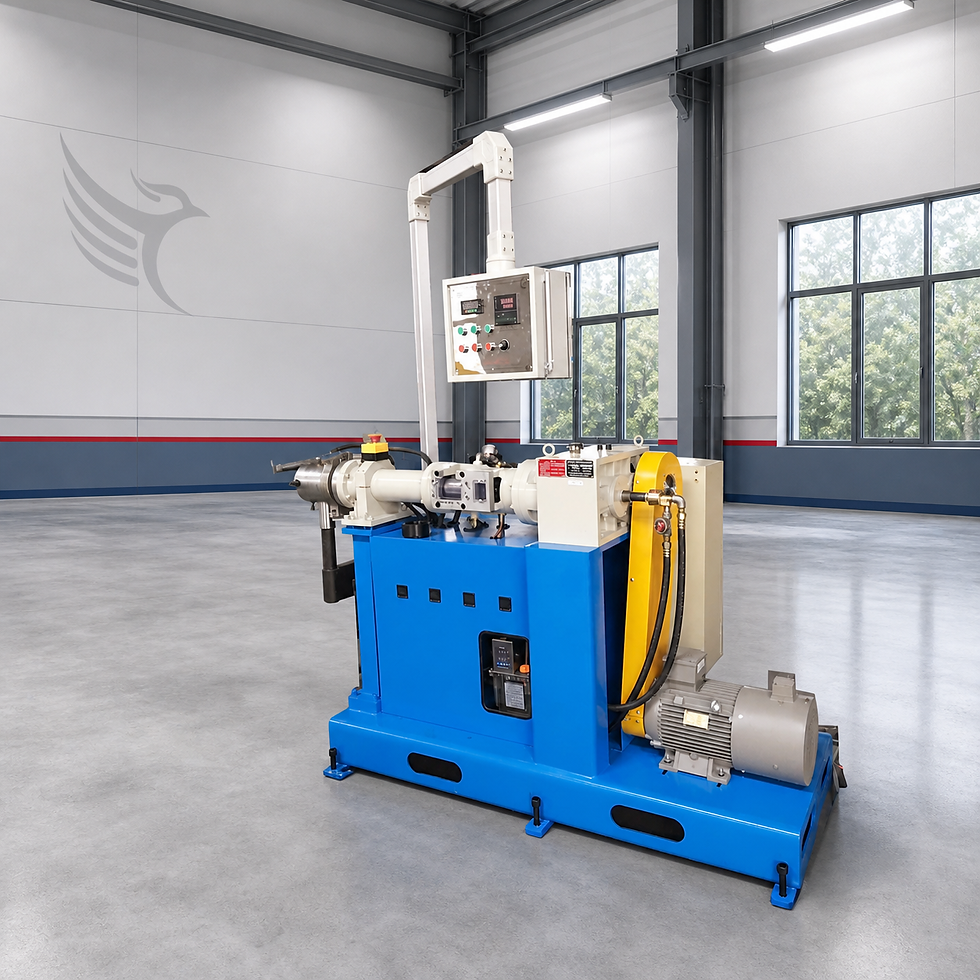

50 mm Silicone Rubber Extruder to Make Silicone Gasket

Unit type

E3-50-12D-01-00

Application

Silicone extrusion and extrude certain size of products in accordance with the machine head

External dimensions

1800×800×2300MM（L*W*H）

Extrusion system

The feeding way

Side rolls transmission power through the screw, active feeding, with broken material alarm

Feeding structure

Side pressure roller gear and the screw the gear meshing transmission with automatic lubricating device.

Screw material

38CrMOAL

Screw hardness

HRC65-68

hardness of steel sleeve

HRC65-70

Nitriding depth

0.4—0.7mm

Pressure control

With the pressure sensor, pressure protection value 0-50MPA adjustable

Extruder fixed

static

L/D

12:01

Screw diameter

50mm

Screw Speed

5-70r/min

Max output

About 50kg/h (under no pressure)

Drive system

Connection between the screw and the gear box

spline connection

Drive of the motor and the reducer

Belt driven

Hardened reducer model

Reducer ZLYJ133-13.5-1

Motor power

Motor [132M-4]-B3 (7.5KW) forced cooling

The total power

9 KW

speed regulation

Frequency conversion
